Description
Chipset: YiHi SX505J
18650 Battery (not included)
Wattage: 1-60W
Output: ≤8V
Size: 82.2x48x22mm
Quiescent current: <10μA
Min Ω: ≥0.15Ω
Max Charge: 5V/1A
Pure Mode Setup
1. Wake up the device.
2. Install a VP cartridge while the device is awake.
3. Choose Pure Mode
4. Choose “LOCK NEW” for a fresh new installed cartridge. Or choose “LOCK OLD” only if you locked that same cartridge before.
5. Ready to vape.
Wattage Mode
1. Choose Wattage Mode
2. Press “UP” / “DOWN” to adjust power
Temp Mode Setup
1. Choose TEMP Mode.
2. Set Temp units: ℃/℉
3. Set your current room temp
4. Choose Temp Modulation:
CONSTANT – (Conservative)
DYNAMMIC – (Punchier vape)
5. Choose wire/TCR value
6. Lock the resistance
*Auto lock – an automatic resistance locking mechanism.
Once it senses that the coil has already cooled down to its base resistance, it will automatically register/lock the resistance Ω.

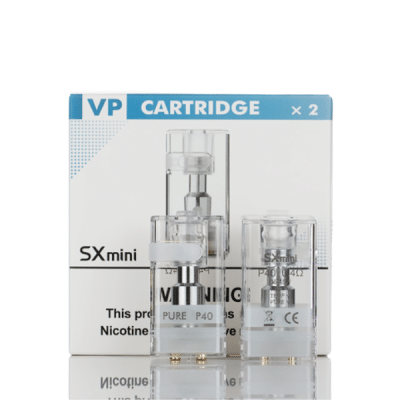

Current VP Cartridge specifications:
P15 | SS316L | 10W-15W | recommended for MTL
P20 | SS316L | 15W-20W | Mesh | recommended for MTL/RDTL
P40 | SS316L | 35W-45W | Mesh | recommended for RDTL/DTL
Additional information
| Weight | 3 oz |
|---|
